Are you are using the Right Mixing Tank Design for Your Industrial Mixing Application? Your industrial mixing application can altogether impact many tank design factors including shape, size and configuration.
Consistency is the most basic factor in tank design for liquid mixing. At the point when the viscosities are water-like (e.g., whiskey, beer, wine, window cleaner, mouthwash), the stream is tempestuous. Practically any mixing tank configuration is permitted. It very well may be short and squatty or tall and thin. It tends to be round, square, rectangular, even horizontal cylindrical or even unpredictably shaped.
Despite the fact that you can utilize pretty much any tank design for mixing water-like liquids, the tank math decides the situation and number of industrial mixer(s) for viable mixing. For instance, for a commonplace miscible liquid mixing application, you can't put one industrial mixer near the end of a long, horizontal cylindrical mixing tank and hope to adequately disturb the tank contents. Odd shaped mixing tanks frequently require more than one industrial mixer as do exceptionally shallow pits and sumps.
At the point when you are mixing liquids of significant viscosity, the stream is laminar (i.e., not tempestuous). In this stream system, your decision of tank math is limited. Round tanks are the most ideal decision, however square tanks with rounded corners and filleted bottoms may now and again be utilized. Generally huge agitator impellers are required and regularly run near the sides of the tank.
Tank math for mixing viscous liquids additionally impacts the design and cost of your industrial agitator. Tanks with a 1:1 perspective proportion (straight side length/diameter ratio) give the most economical industrial agitator design. Tall, thin tanks can be mixed, however as the angle ratio builds the mix time turns out to be any longer at the same force level and agitator cost.
The ideal tank design for solids suspension mixing applications is round and has a viewpoint ratio of about 1:1. It should either be perplexed with the industrial mixer on focus or the mixer can be point balanced mounted. A middle mounted industrial mixer in an unbaffled tank doesn't successfully suspend solids. Straight-upward offset mixers in unbaffled tanks leave a critical mend of solids in a single area of the tank floor. Point offset mixers are by and large limited to somewhat little volumes despite the fact that we have utilized them effectively in 25,000 gallon tanks.
Perceive that solids can undoubtedly be suspended to a tallness of about 85% of the tank breadth with a solitary agitator impeller. Nonetheless, in any event, when numerous agitator impellers are utilized, it is for the most part unfeasible to suspend solids higher than about 1.4 occasions the tank width, and it is almost difficult to suspend them more than twice the tank measurement in a regular tank. If these imperatives are unsatisfactory in your mixing cycle, a draft tube should be introduced in the mixing tank.
At the point when the framework contains minuscule strong particles, their inclination to settle out is only constrained by the thickness of the liquid. This is called Stokes settling. The majority of these frameworks can be treated as liquid mixing applications, and a large number of the limitations above don't make a difference. Be that as it may, in case there is a force disappointment and the solids are permitted to settle, they might be troublesome or difficult to re-suspend if the limitations above were overlooked in the tank design.
Dispersion mixing applications utilize generally high shear, fast agitators. This quite often requires a vertical round mixing tank design to give stream all through the tank and flow material in the high shear zone. Special cases might be satisfactory when the thickness is moderately high, however these applications are surprising.
Mixing tanks for scattering applications ought to be chosen so the static tallness of the more noteworthy segment is no higher than the tank distance across to proficiently move material into the scattering zone. The industrial agitator can be point counterbalanced mounted, however bewilders are ordinarily introduced with a middle mounted agitator in the mixing tank to forestall liquid whirling and elevate start to finish smooth motion.
The ideal mixing tank design for solids dissolution is round and has a perspective ratio of about 1:1. This setup regularly gives the least introduced cost and working expense for the agitator design. The tank should either be puzzled with the industrial mixer on focus or the mixer can be point counterbalanced mounted for generally little volumes, in spite of the fact that we have utilized them effectively in 25,000 gallon mixing tanks.
Baffling is a vital tank design thought for dissolution applications. A middle mounted industrial mixer in an unbaffled tank doesn't successfully suspend solids. Counterbalance mixers in unbaffled tanks may leave a huge mend of solids in a single area of the tank floor.
Emulsification mixing measures quite often require a vertical round tank. The tank ought to be chosen so the static tallness of the more noteworthy part is no higher than the tank distance across. The industrial mixer can be designed with point offset mounting in a non-baffled tank, however we ordinarily hope to see a middle mounted mixer with perplexes introduced in the tank. Numerous emulsions are exceptionally gooey, and regularly require scratched wall agitation related to a subsequent high velocity disperser mixer in a similar tank. Obviously, these mixing tanks are consistently round.
Gas dispersion and absorption mixing applications quite often require a vertical round tank. This is one of only a handful few situations where tall thin mixing tanks are liked, and some have angle proportions more prominent than 3.0.
Since gas dispersion is quite often a tempestuous activity, round tanks with baffles are required. Balance mounting is unequivocally debilitated on the grounds that sporadic uneven hydraulic powers will be exceptionally huge. This requires expensive "oversizing" of the industrial mixer to forestall destructive vibration.
Mixing tank plan for crystallization applications is like solids suspension applications. Notwithstanding, there are many specific "crystallizers" which use the innovation suppliers designs that fuse a draft tube that utilizes exceptional mixing tank plans for singular applications. These mixing tanks are designed dependent upon the situation. Other crystallizer plans may utilize jacketed, round tanks.
Mixing tank design for heat move applications shares much for all intents and purpose with tank design for liquid mixing applications. Notwithstanding, in heat move applications, a warmth source (or sink) is introduced in the mixing tank. These might be pipe coils, plates or the mixing tank might be jacketed. Jacketed mixing tanks are quite often round and typically utilized when scratched wall agitation is normal. In any case, a jacketed mixing tank can likewise be utilized in most different conditions.
There are likewise an extraordinary variety of coil plans utilized for heat transfer. Some coil gatherings can fill in as baffles, however when they can't, baffles should be installed in the mixing tank when required. Baffles can likewise be the coil upholds with a projected confound region like the baffle region utilized in case there were no coils.
Mixing Tanks assume an exceptionally basic part in the creation of materials. A colossal measure of parts is placed into these tanks to be combined as one utilizing refined mixing. This method brings about the creation of made products.
Nonetheless, there are different substances that can't be combined as one because of different chemical reactions. Various kinds of Mixing Tanks fit into each conceivable requirement of mixing. They are designed with greatness that takes into consideration a fast get together of various measures of parts. These tanks do the mixing mixing process and helpfully.
The tank is normally designed for mixing liquids that have various plumbing lines that are directed from and to the unit. While the liquids are being mixed in the tank, they additionally get moved to the following stage, i.e., to the pipelines under the tank.

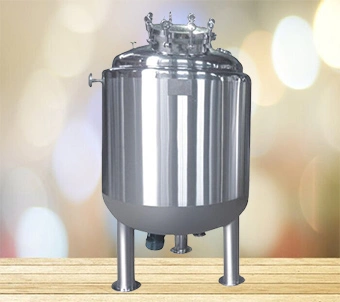

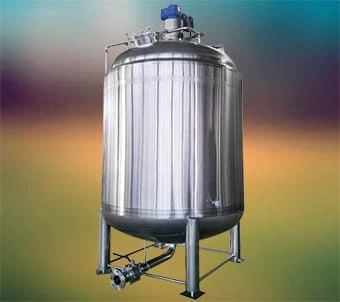

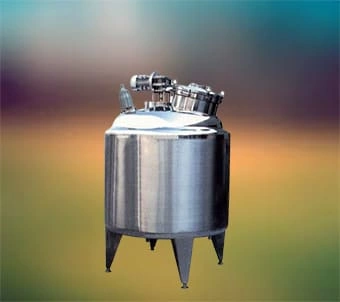

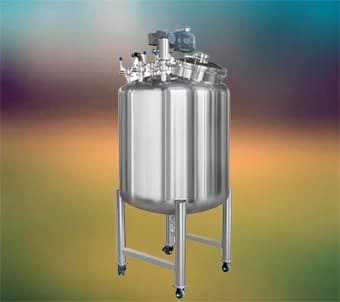

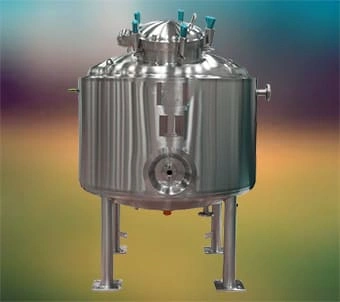

A Mixing Tank is a machine compartment that is utilized to mix different components together. The tank is made up of various materials like plastic, strong rubber, glass; however the most well-known type of Mixing Tank is comprised of stainless steel.
Optimize your mixing tank system with decisions and flawlessness. A variety of blenders are accessible including top section agitation, bottom entry mixer, mag drive top and bottom entry mixing, multi-motion style blenders, and single use blenders for GMP use.
Specialists and successful businessmen with the most recent and present day machine help in the improvement of their work. Different fields like chemical manufacturing, building construction, and food processing utilize the mixing tanks. They help in creating less waste compared with the traditional, manual work.
Stainless mixing tanks are pointed toward processing liquid, with packaging as the following period of the technique. The system includes viable moving and mixing with mixing methods to elevate the mixing process. Fundamentally, the utilization of mixing tanks diminishes the amount of task and time utilized while working.
