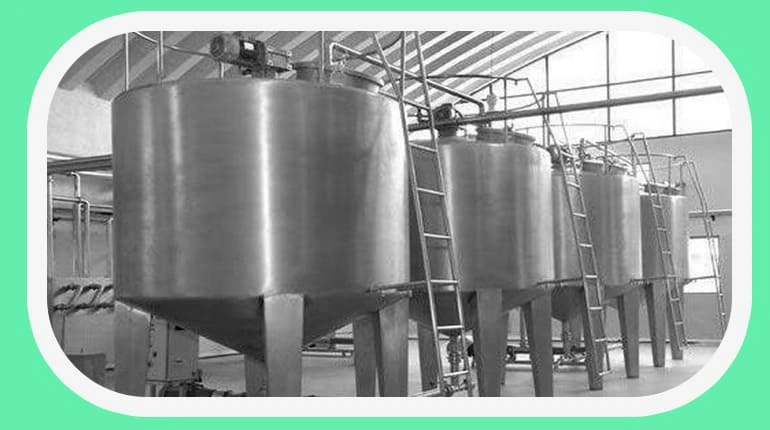

Your industrial mixing application can essentially impact many tank design factors including shape, size and design.
Consistency is the most basic figure tank design for liquid mixing. At the point when the viscosities are water-like (e.g., bourbon, lager, wine, window cleaner, mouthwash), the flow is tempestuous. Practically any mixing tank configuration is permitted. It very well may be short and squatty or tall and thin. It very well may be round, square, rectangular, level barrel shaped or even unpredictably formed.
In spite of the fact that you can utilize pretty much any tank design for mixing water-like fluids, the tank calculation decides the position and number of industrial mixer(s) for viable mixing. For instance, for a normal miscible liquid mixing application, you can't put one industrial mixer near the finish of a long, level round and hollow mixing tank and hope to really upset the vessel contents. Odd formed mixing tanks frequently require more than one industrial mixer as do exceptionally shallow pits and sumps.
At the point when you are mixing liquids of huge consistency, the stream is laminar (i.e., not fierce). In this stream system, your decision of tank calculation is confined. Round tanks are the most ideal decision, yet square tanks with adjusted corners and filleted bottoms may some of the time be utilized. Moderately enormous fomenter impellers are required and frequently run near the sides of the tank.
Tank math for mixing viscous liquids likewise influences the design and cost of your industrial agitator. Tanks with a 1:1 perspective proportion (straight side length/breadth proportion) give the most efficient modern instigator plan. Tall, thin tanks can be blended, however as the perspective proportion builds the mix time turns out to be significantly longer at the same power level and instigator cost.
The ideal tank design for solids suspension mixing applications is round and has a perspective proportion of around 1:1. It should either be astounded with the industrial mixer on focus or the mixer can be point counterbalanced mounted. A middle mounted industrial mixer in an unbaffled tank doesn't successfully suspend solids. Straight-upward offset mixers in unbaffled tanks leave a huge recuperate of solids in a single area of the tank floor. Point offset mixers are by and large confined to generally little volumes despite the fact that we have utilized them effectively in 25,000 gallon tanks.
It is critical to perceive that solids can undoubtedly be suspended to a level of around 85% of the tank measurement with a solitary fomenter impeller. Be that as it may, in any event, when various fomenter impellers are utilized, it is for the most part unreasonable to suspend solids higher than around 1.4 times the tank breadth, and suspending them over two times the tank measurement in a traditional tank is almost unthinkable. In the event that these limitations are unsuitable in your mixing cycle, a draft tube should be introduced in the mixing tank.
At the point when the system contains tiny strong particles, their propensity to settle out is only constrained by the consistency of the liquid. This is called Stokes settling. The majority of these systems can be treated as fluid mixing applications, and a significant number of the limitations above don't make a difference. Nonetheless, on the off chance that there is a power disappointment and the solids are permitted to settle, they might be troublesome or difficult to re-suspend on the off chance that the limitations above were disregarded in the tank design. Which is better For Industrial Mixing, Round Tanks or Square Tanks?
Each sort of tank enjoys its advantages and advantages. An incredible aspect concerning square tanks is that the edges of the tank can go about as confounds, considering the exchange of the instigator's ability to be put all the more successfully into the fluid. The inconvenience of the instigator's force into the cycle liquid causes dynamic interaction reaction. This thus yields a pivotal stream example and consistency in the liquid media. Remember, the creation expenses of a square or rectangular tank probably won't be cutthroat contrasted with cylindrical shaped tank.
Cylindrical shaped tanks then again, can have a more grounded design, however will normally require puzzles when the mixer is focus and in an upward direction mounted.
Amazing mixing results can be achieved in one or the other square or round tanks. However long the mixer application engineer realizes which will be utilized, they can guarantee the mixer and tank configuration cooperate to accomplish the general cycle objectives.Contact Us
